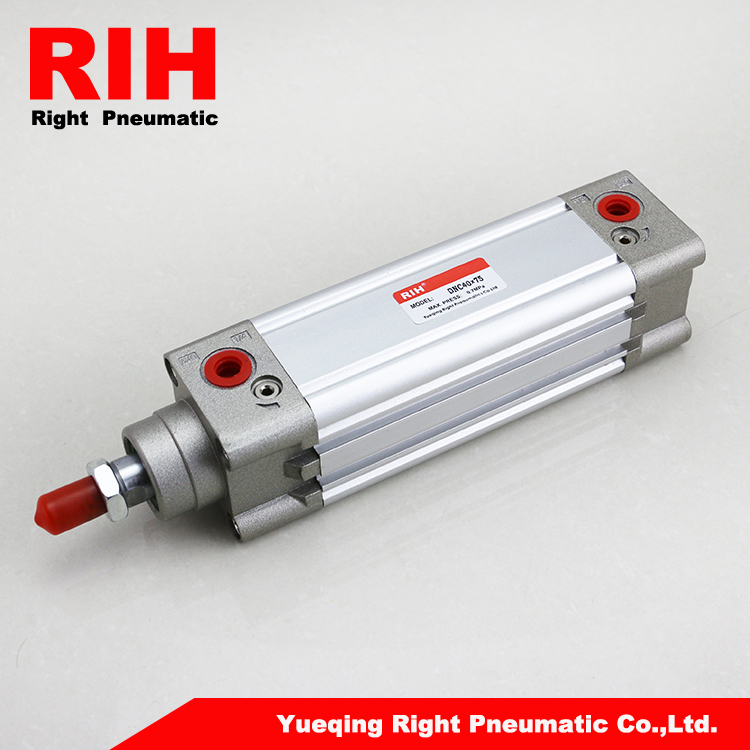

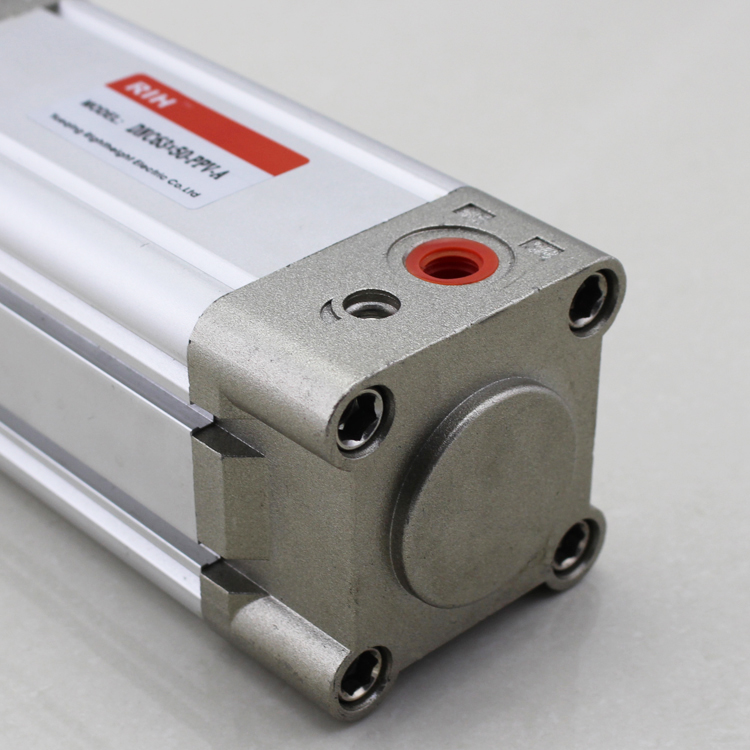

DNC Series Air Cylinder
DNC63x50 Aluminum Alloy Double Acting Standard Pneumatic Cylinder
Specifications |
||||||
Bore(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
Working medium |
Filtered Air |
|||||
Motion pattern |
Double Action |
|||||
Compression Pressure |
1.5MPa |
|||||
Max. Operating Pressure |
1.0MPa |
|||||
Min. Operating Pressure |
0.1MPa |
|||||
Buffer |
Air Buffer(Standard) |
|||||
Condition Temperature |
5~60°C |
|||||
Operating Speed |
50~500mm/s |
|||||
Margin of Stroke Error (mm) |
0~250 251~1000 1001~1500 |
|||||
Operating Life |
Not less than 4000Km |
|||||
Lubricate |
Not Necessary+1.0 |
|||||
Joint Pipe Bore |
1/8″ |
1/4″ |
3/8″ |
1/2″ |
Material:
Barrel | Aluminum Alloy |
Piston | Aluminum Alloy |
Piston Rod | 45# steel with chromium plated |

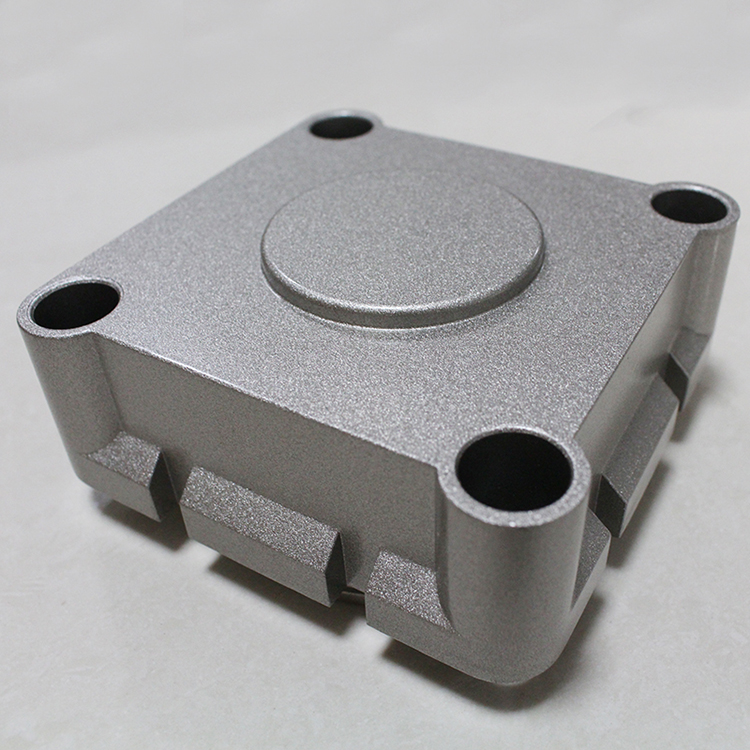

Front Cover | Aluminum Alloy |
Rear Cover | Aluminum Alloy |
O-Ring | NBR |
Wearable Ring | PTFE |
Cushion Screw | Brass |
We can also manufacture according to customers’ specific requirement. please feel free to contact us for special request
