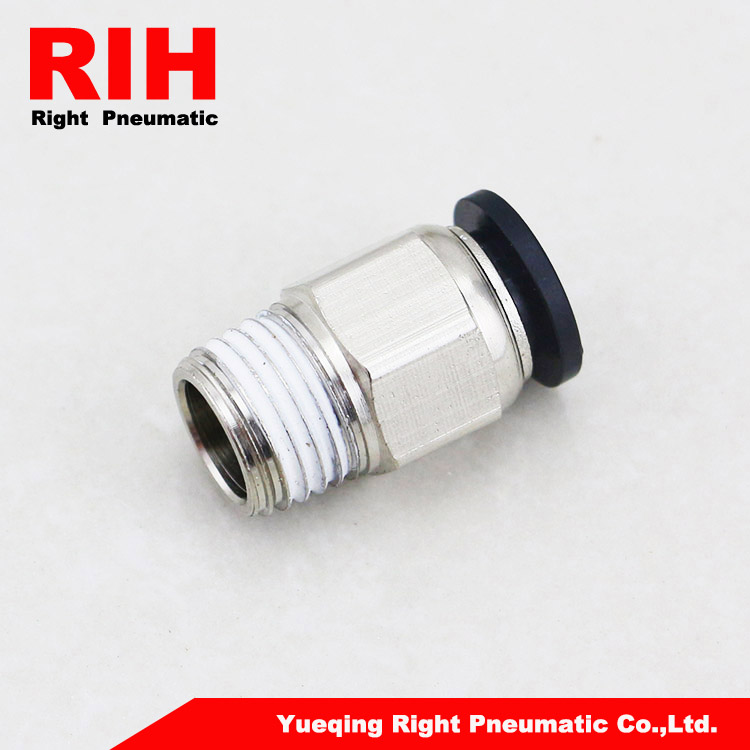

PC Series Air Fittings
PC4-M5 Quick Release Quick Connect
Air Hose Copper Pneumatic Fitting Manufacturer
Product Description for PC Series Air Fittings
Model:
| PC4-M5 | PC10-01 | For example:PC4–01(G)(1)(2)(3)(4) | ||
| PC4-01 | PC10-02 | (1)Model | ||
| PC4-02 | PC10-03 | (2) Tube OD(mm) | ||
| PC4-03 | PC10-04 | Metric:3/4/5/6/7/8/9/10/11/12/13/14/15/16 | ||
| PC6-M5 | PC12-01 | English:1/8 5/32 3/16 1/4 5/16 3/8 1/2 | ||
| PC6-01 | PC12-02 | (3)Thread Size | ||
| PC6-02 | PC12-03 | Metric:M3/M5/M6/M8/M10/M12/M14/M16/M22 | ||
| PC6-03 | PC12-04 | English:01:1/8 02:1/4 03:3/8 04:1/2 | ||
| PC6-04 | PC14-03 | (4)Inch thread form: | ||
| PC8-01 | PC14-04 | Default:PT(BSPT/R) | ||
| PC8-02 | PC16-02 | (G):PF,BSPP | ||
| PC8-03 | PC16-03 | (N):NPT(Z) | ||
| PC8-04 | PC16-04 | |||
Specifications:
| Type | PC fitting/Quick release connector/Mechanical joint fitting |
| Male Thread Size | M5 thread |
| Medium | Air – Water – Vacuum |
| Apply For | 4mm tube/hose |
| Applicable Tube | PU / PA / PE / PVC |
| BSP Thread Data | 1/8″ BSP thread———Thread Outside Diameter: 9.728mm
1/4″ BSP thread———Thread Outside Diameter: 13.157mm 3/8″ BSP thread———Thread Outside Diameter: 16.662mm 1/2″ BSP thread———Thread Outside Diameter: 20.955mm 3/4″ BSP thread———Thread Outside Diameter: 26.441mm 1″ BSP thread———–Thread Outside Diameter: 33.249mm |
| Note | 1.Due to the difference between different monitors, the picture may not reflect the actual
color of the item. and quantities for your choice,the more your purchase the best price you get. Thank you! |
Features:
| 1. | Designed for Polyurethane or Nylon tubing. |
| 2. | Simple installation pneumatic push in connector. |
| 3. | After installation, the direction of the tube can be changed freely. |
| 4. | Elliptical release ring help to connect tube easily by manual, no special tools required. |
| 5. | Outside (and Inside where applicable) hexagonal wrench tightening. |
|
6. |
This Quick fittings are only used for industrial automatic apparatus and can not be applied on any
medicinal equipment. |
Why Choose RIH for PC Series Air Fittings?
Yueqing Right Pneumatic Co.,Ltd.was founded on April 4th,2003,And known as “RIH”,
is a Manufacturer of pneumatic and electronic products with well-equipped testing facilities and strong technical force.
Our main products/services cover Air Treatment Units,Pneumatic Cylinder,Solenoid Valves,Pneumatic Accessories
(PC Series Air Fittings)&Various Pneumatic Equipment&OEM Services.
Both performance index and quality of our products reach the top level of domestic markets.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
With a wide range,good quality,reasonable prices and stylish designs,our products are extensively used in Automation Equipment,Machine,Building and Other Industries,Such as Textile, Chemical, Mineral,electric Power,and Papermaking industries.
Our company promises all users of the first-class products and the most satisfying post-sale service.
We have many years experience with excellent technology team and professional customer service.
Meanwhile,Our company staffs a team of experts devoted to the development of products.
We accept OEM,ODM for All Pneumatic Products(PC Series Air Fittings).
If you have unique requirements,we can customized the products to accommodate your product and packing with your logo and labels.
Our experienced staff can assist to solve the problems you meet.
This success of the company RIH Pneumatic(PC Series Air Fittings)is based on:
High class quality standard
Customer satisfaction
Fair price policy
Flexibility
The high-class quality standard of the products of company RIH is reflected in our quality management system, certificated CE certificate for international market.
RIH Pneumatic Manufactures below products:
Pneumatic components: Air Cylinder, Solenoid Valve, F.R.L
Solenoid valve: Standard Solenoid Valve,Multipurpose Solenoid Valve
Pneumatic fittings:Plastic Pneumatic Fittings,Metal Pneumatic Fittings(PC Series Air Fittings),Pneumatic Muffler,Water Push In Fittings
Air gun & Couplers:Pneumatic Couplers,Air Guns,Air Tool Kits
Air hoses:Air Tubes,Tube Cutter,Pipes
And So On
| Brand Name | RIH |
|---|---|
| Model Number | PC Series Quick Release Quick Connect Air Hose Copper Pneumatic Fitting Manufacturer PC4-M5 |
| Place of Origin | Wenzhou,ZheJiang,China |
| Head Code | Round |
| Shape | Equal |
| Connection | Male |
| Type | Cap |
| Technics | Moulding |
| Material | Copper |
| Color | Black |
| Normal Pressure Range | 0.1~0.6Mpa |
| Maximum Pressure | 1Mpa |
| Temperature | 0 -60°C |
